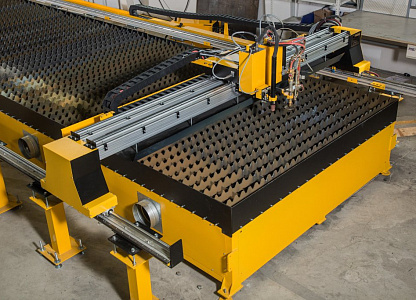

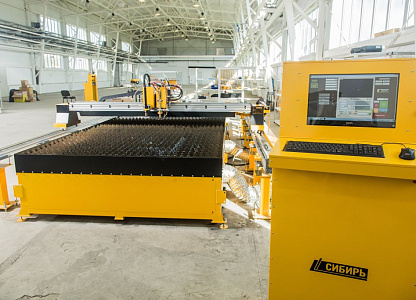

THERMAL CUTTING MACHINE SIBIR ARM 2000X3000

Go back to the catalogue

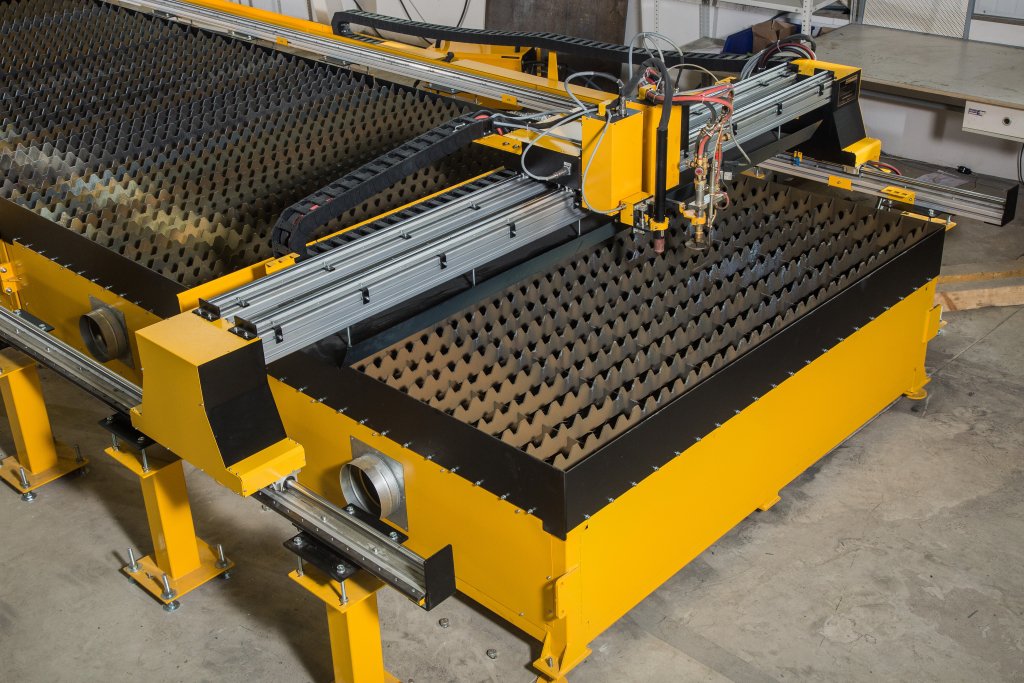

Thermal cutting machine Sibir Arm with operational area 2000x3000 mm.

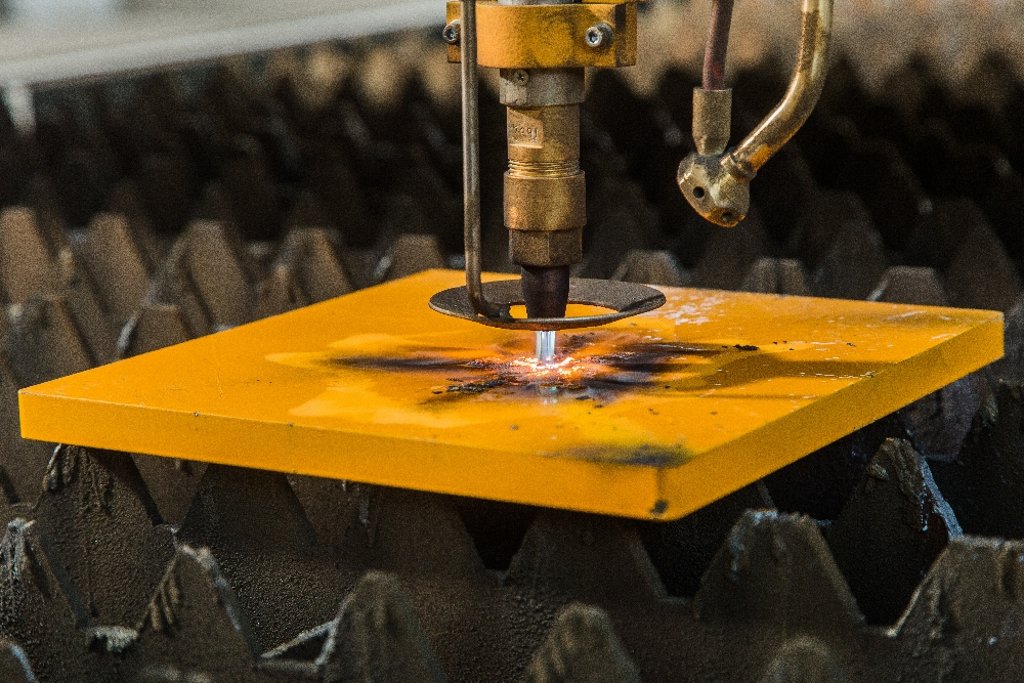

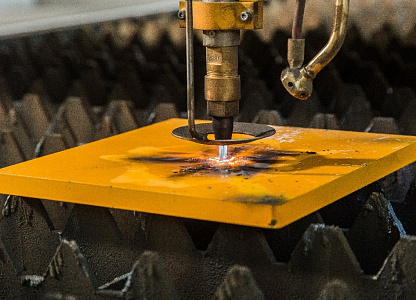

The machine is designed to cut the metal parts up to 35 mm thick by the plasma torch and up to 100 mm by the gas equipment.

Production time: up to 15 working days.


36 months of guarantee service*
*in case of buying the whole set of equipment SIBIR (gantry thermal cutting machine+ plasma power source+ installation services.


24 months of guarantee service**
**for any other equipment set.


The cutting process is controlled by a modern microprocessor control system that provides the entire control. It provides the following options: drawing of the plasma cutting plan; changing the process parameters of plasma (material type, thickness, cutting speed, cutting current, the height of the holes and the working height of the torch above the material sheet, gap width and its compensation, cutting time, heating time, start and control of the cutting process, correction of parameters during the cutting process) , suspension of cutting, removal of the torch (if it is necessary to replace the electrodes, nozzles, etc.), the continuation of the cutting process. Data transfer to the machine is carried out by using a flash card via USB connector or Wi-Fi.


Plasma power source is not included to the equipment set but can be easily added. We recommend power source SIBIR 105PR which was designed specifically for this equipment set.


Read more

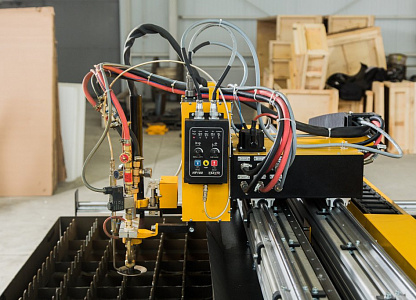

    • CNC guided gantry with 3 axis control (X,Y,Z).
    • Licensed software.

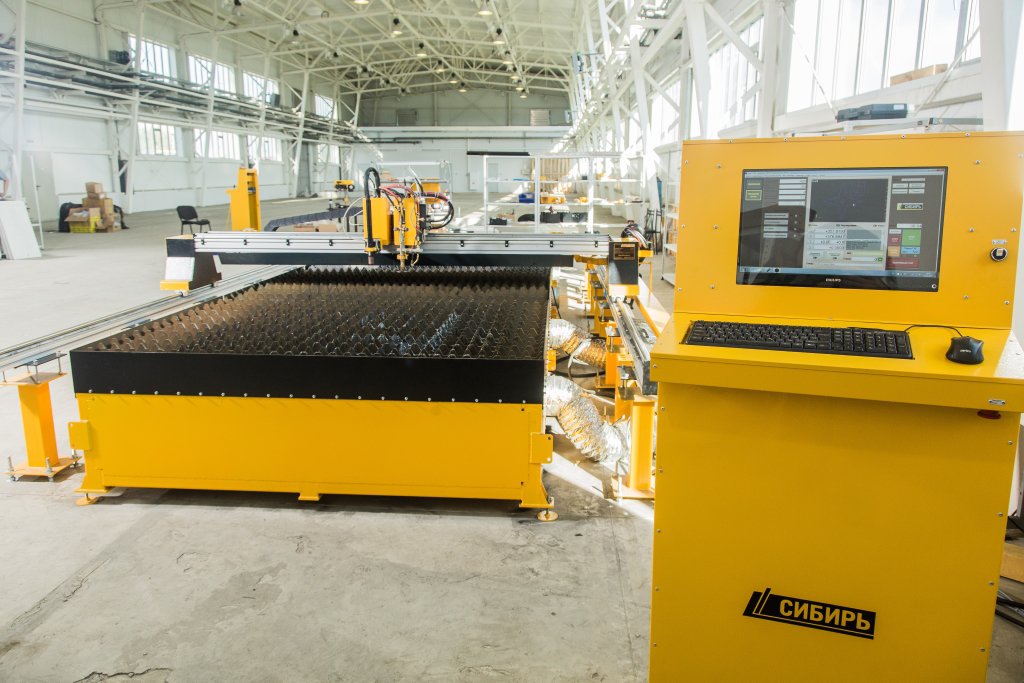

    • CNC-guided console.
    • Automatic metal search system.

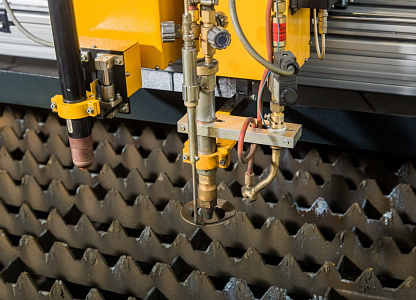

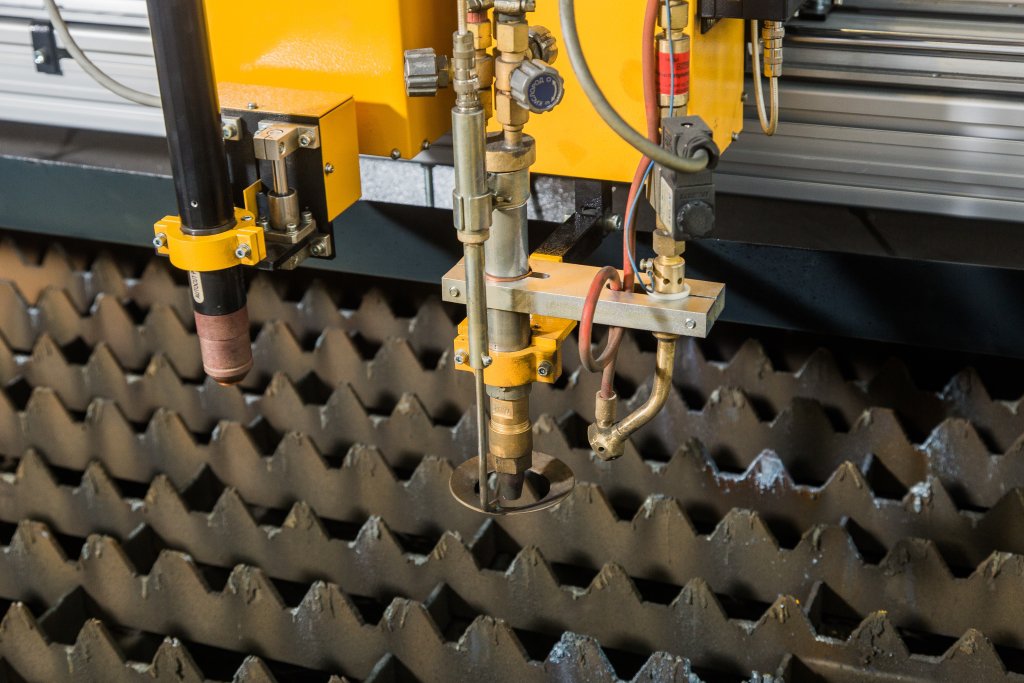

    • Automatic torch height control.
880 000 RUB.
Send a request
DESCRIPTION SPECIFICATIONS VIDEO Delivery PAYMENT
Thermal cutting machine Sibir Arm with operational area 2000x3000 mm.

The machine is designed to cut the metal parts up to 35 mm thick by the plasma torch and up to 100 mm by the gas equipment.

Production time: up to 15 working days.


36 months of guarantee service*
*in case of buying the whole set of equipment SIBIR (gantry thermal cutting machine+ plasma power source+ installation services.


24 months of guarantee service**
**for any other equipment set.


The cutting process is controlled by a modern microprocessor control system that provides the entire control. It provides the following options: drawing of the plasma cutting plan; changing the process parameters of plasma (material type, thickness, cutting speed, cutting current, the height of the holes and the working height of the torch above the material sheet, gap width and its compensation, cutting time, heating time, start and control of the cutting process, correction of parameters during the cutting process) , suspension of cutting, removal of the torch (if it is necessary to replace the electrodes, nozzles, etc.), the continuation of the cutting process. Data transfer to the machine is carried out by using a flash card via USB connector or Wi-Fi.


Plasma power source is not included to the equipment set but can be easily added. We recommend power source SIBIR 105PR which was designed specifically for this equipment set.


  • Step or servo-step engine (up to customer)
  • Max. speed of moving along the coordinates - 20 000 mm /min
  • Max. defect of rack gear – 0,1 mm/m
  • Precision of torch positioning – 1 class of precision
  • Z axis height - 150 mm
  • Max. thickness of the metal – depends on the power source : SIBIR 105PR - up to 35mm, power source 200A – up to 75mm
  • Max. thickness of the metal being cut by the gas cutter – up to 100mm
  • Max. load of the table - 780 kg / m2 (metal sheet of 100 mm)
  • Operating ambient temperature +10…35 °С
  • Supply voltage - 220 В
  • Rated input – 1kW
  • Control pillar – included
  • Net weight (oxygen-plasma cutting machine) – 1425 kg
  • Net weight (plasma cutting machine) -1400 kg
  • Overall dimensions – 4000x3357x1290 mm
