CNC THERMAL CUTTING CONSOLES

THERMAL CUTTING CONSOLE SIBIR ARM K 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X3000

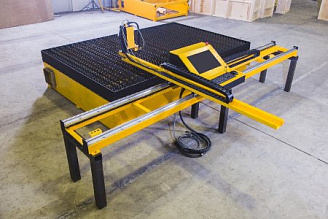

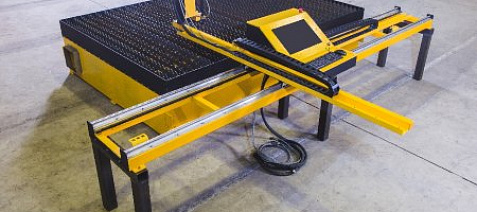

THERMAL CUTTING CONSOLE SIBIR ARM K 1500X3000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35
Weight, кg 300
THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X3000

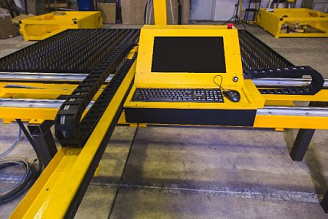

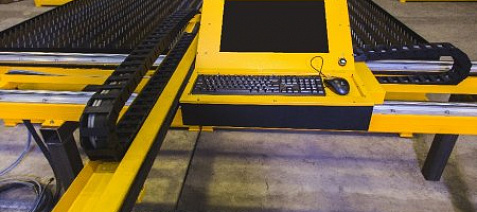

THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X3000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35
Weight, кg 330
THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X3000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X3000

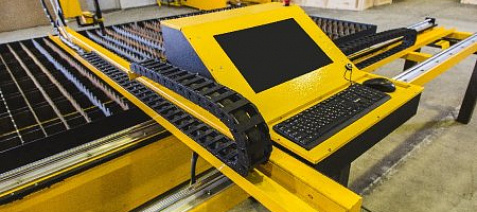

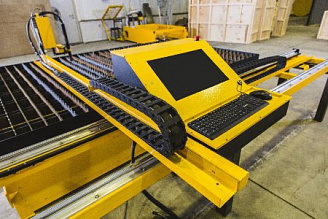

THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X3000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35
Weight, кg 300
THERMAL CUTTING CONSOLE SIBIR ARM K 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K 1500X6000
THERMAL CUTTING CONSOLE SIBIR ARM K 1500X6000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35
THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X6000
THERMAL CUTTING CONSOLE SIBIR ARM K G 1500X6000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35
THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X6000 THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X6000
THERMAL CUTTING CONSOLE SIBIR ARM K PG 1500X6000
Supply voltage, V 220
Operating ambient temperature, °С +10...+35

CNC thermal cutting consoles


The thermal cutting machine became one of the main cutting machines.


There are several options for plasma cutting equipment with computer control. The CNC –guided thermal cutting console is one of them. The consoles are designed for use in small production plants for small-scale production. Their advantage is not only in the convenience of its usage due to its relatively light weight and small dimensions, but they are also can be easily assembled, adjusted and put to use.


The thermal cutting console consists of CNC, rail track, plasma cutting torch and a supporting exhaust or water-filling table.


Cutting console allows you to cut metal sheet with high accuracy and deliver high quality of the finished product. If you seek for the most accurate cutting, we recommend you to consider the gantry systems.


Thermal cutting consoles can be equipped with oxy-fuel or plasma torches placed on the guide rod which is adjustable in all three axes. All the movements are completely controlled by a computerized system. In fact, you need to load the drawing into the program, and just press the "Start" button, so you don’t need to have the operator supervising after the cutting process.


The cutting consoles are recommended for the small-scale production lines. Firstly, they are cheaper than the gantry cutting machines. Secondly, the cutting consoles are compact and relocatable. They can be easily assembled and disassembled, if you often move the cutting consoles. Thirdly, the cutting consoles are highly productive and provide excellent quality.
